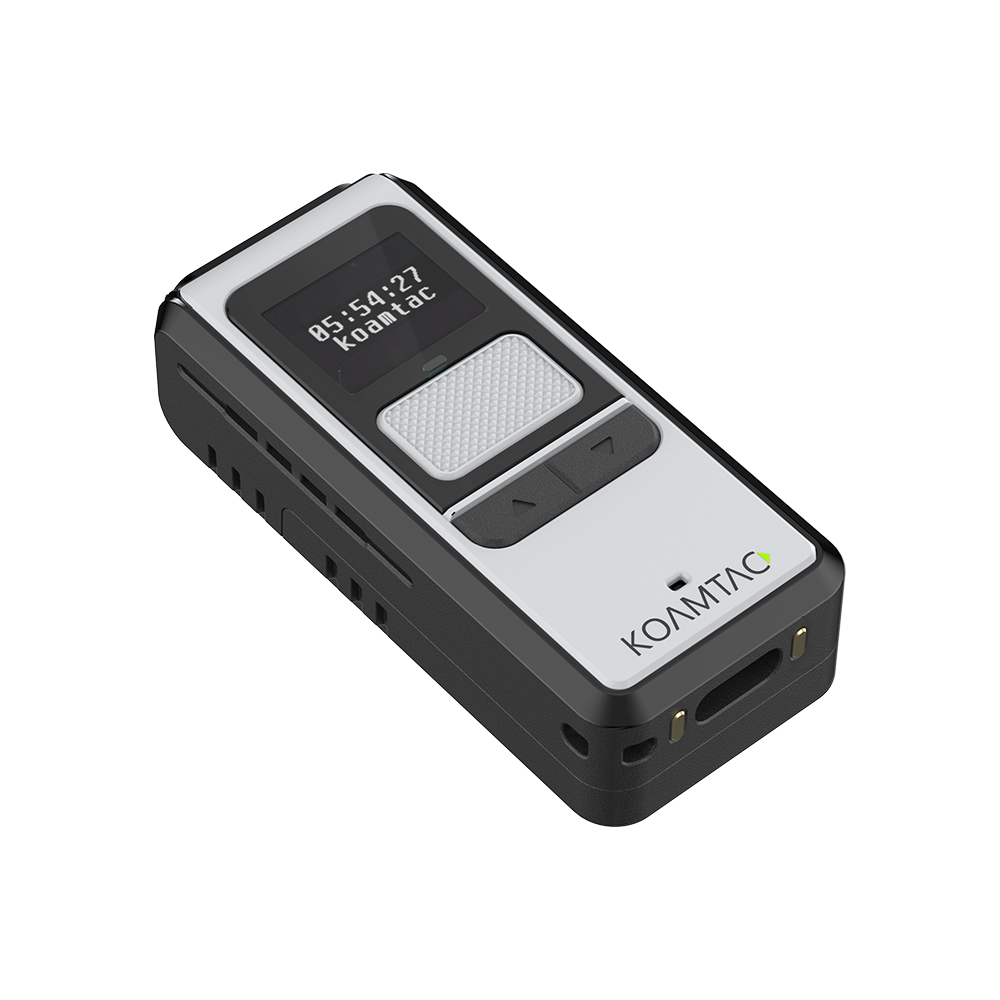

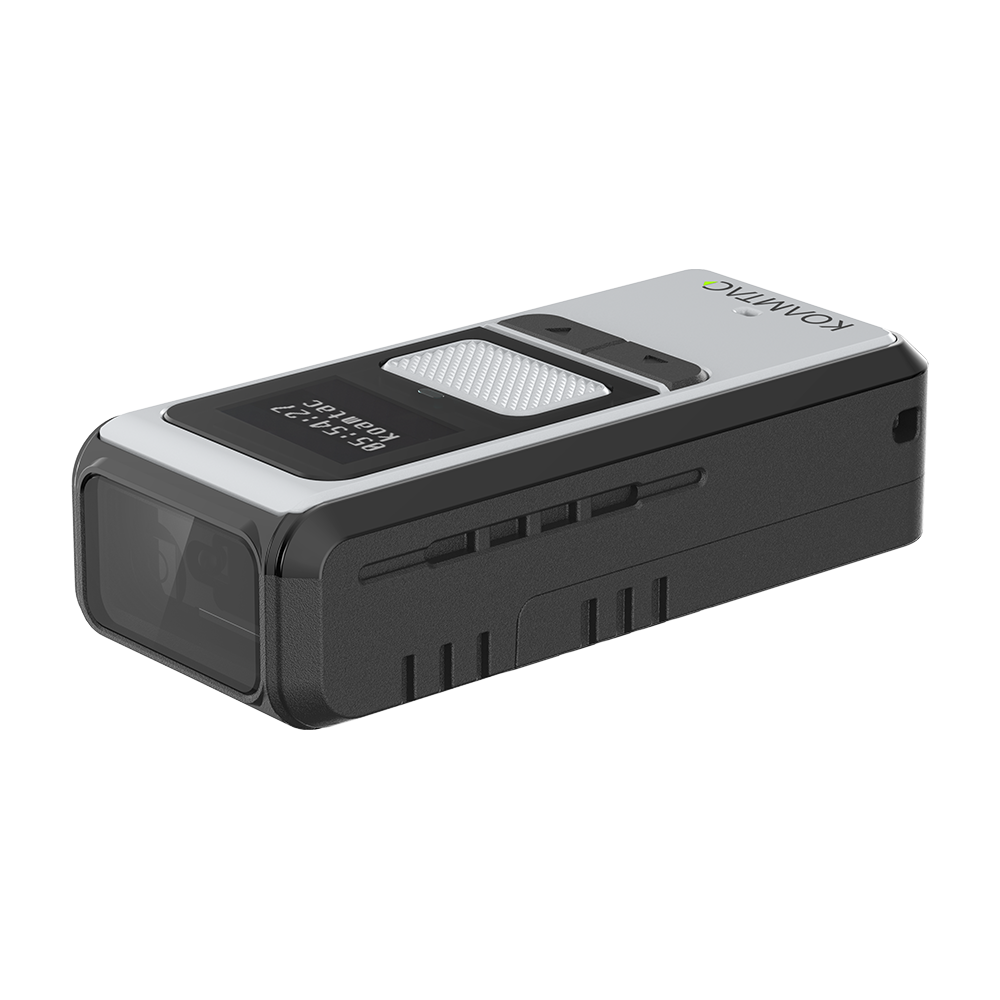

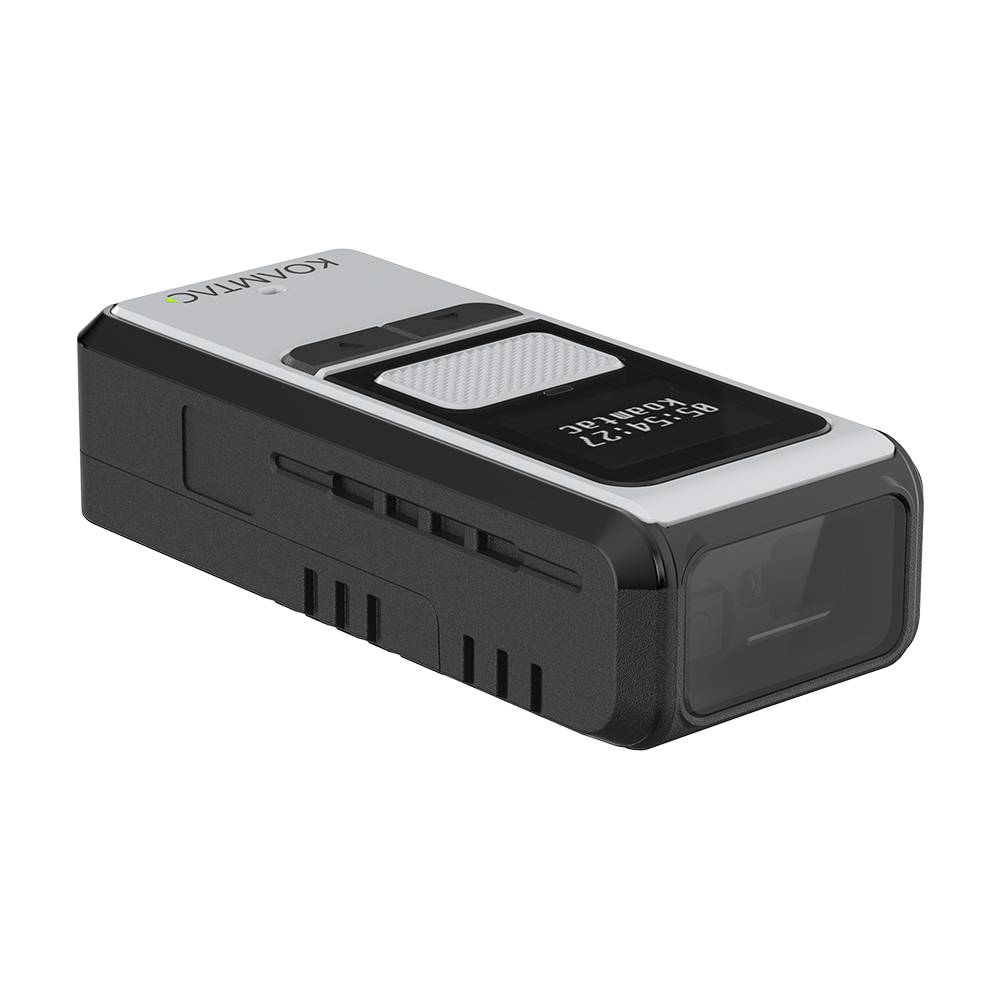

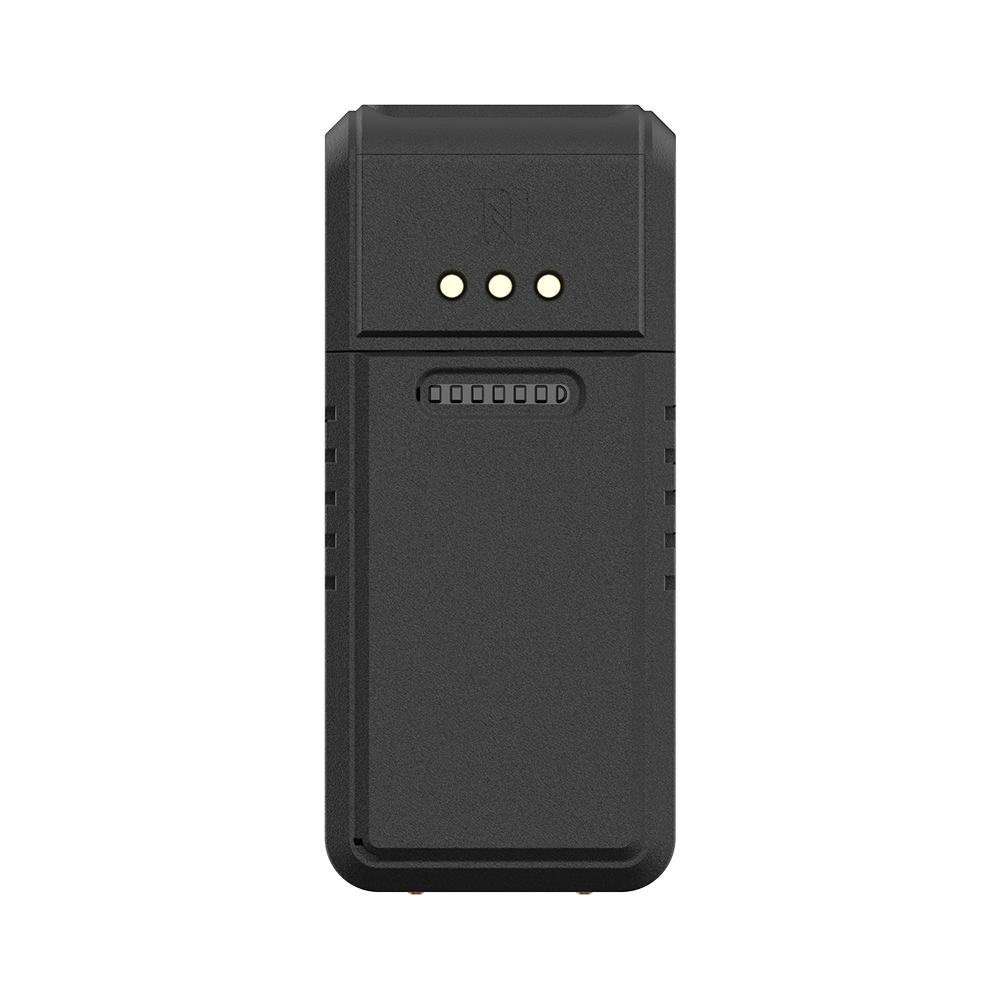

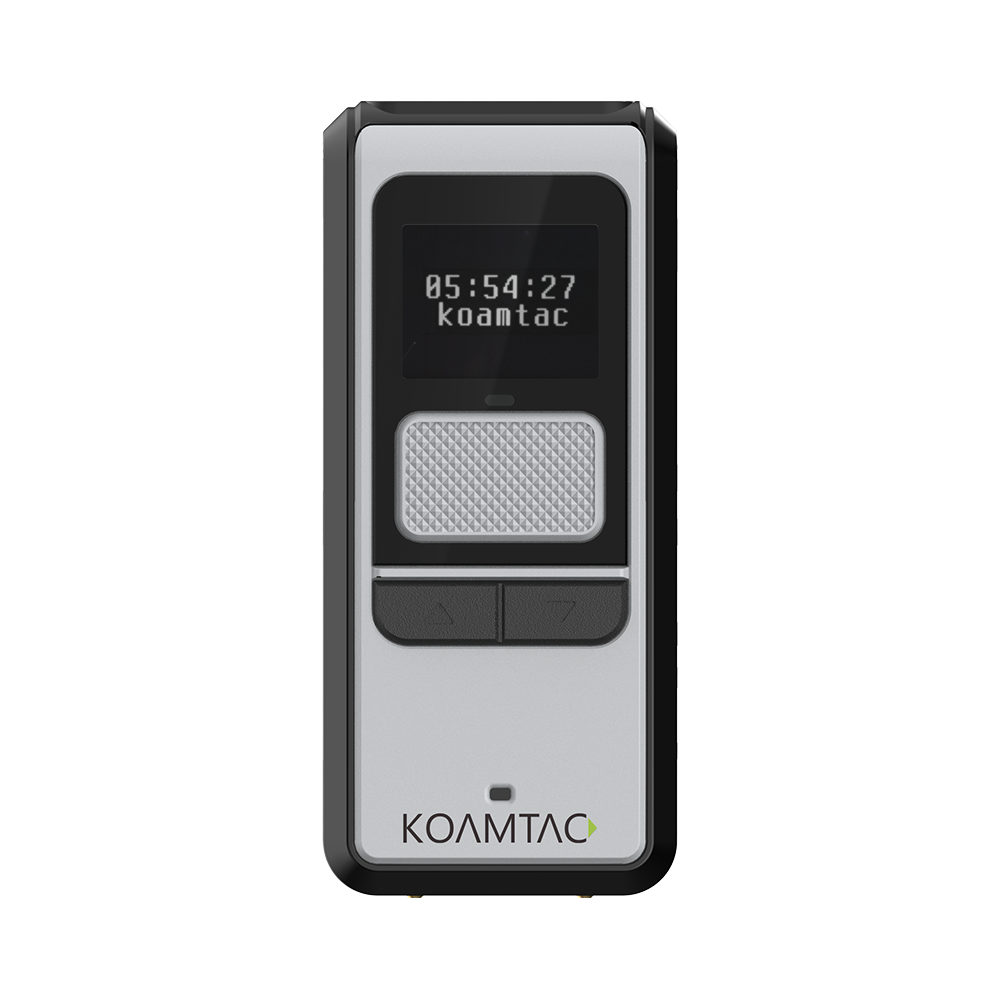

KDC185 2D Wearable Scanner

KDC185 2D Wearable Scanner

SKU. 254000 EAN. 8809697770331

KDC185 2D Wearable Scanner

€299

€299

Sale Coming Soon

Ultra-Compact Finger-Worn Barcode Scanner with BLE and NFC Pairing

Key Features

Single-finger wearable design for hands-free operation
2D imager scan engine supporting all major barcode symbologies
Bluetooth® Low Energy (BLE 5.0) connectivity
NFC pairing for quick Android device setup
0.66″ OLED display with multiple LED indicators
IP65-rated for dust and water resistance
Advanced power management with hibernation mode

In the Box

KDC185 Barcode Scanner

* Scanner only. Wearables sold separately.

View full details

Features

Maximum Compatibility

Designed to be worn on a single finger

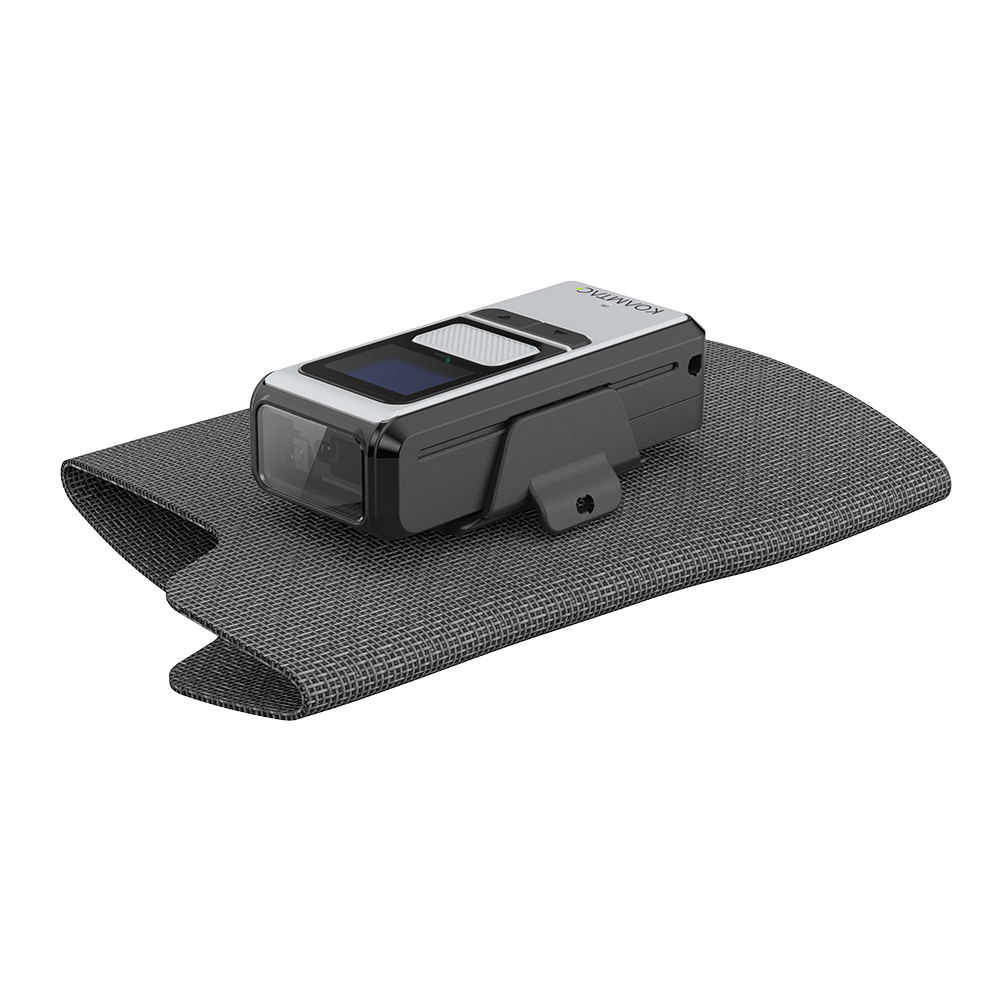

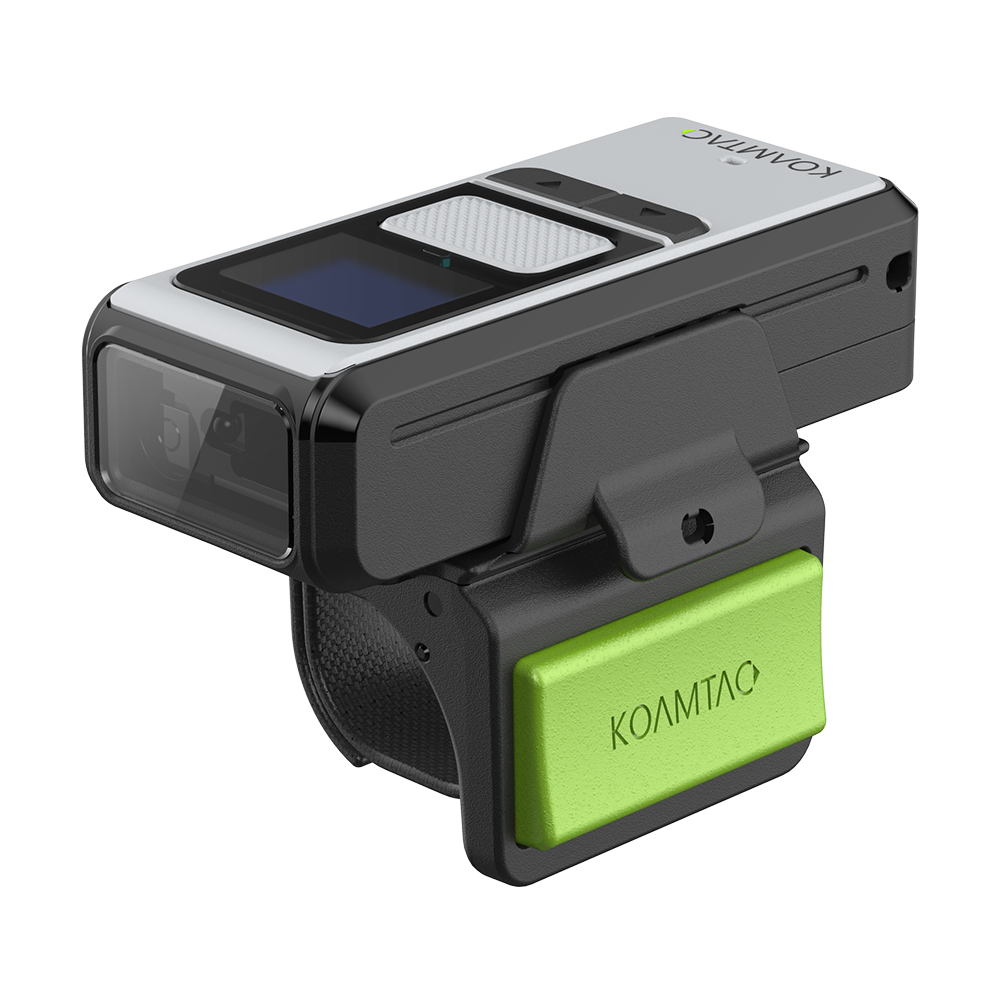

Integrates with KDC185 Ring Trigger and Safety Glove
BLE connectivity for smart watches, smart glasses, and other smart devices
NFC pairing enables quick connection to Android devices in HID or SPP mode
Automatic setup supported by Samsung Galaxy Friends and Samsung KNOX

Symbologies Supported

Supports all major 1D barcode
Supports all major 2D barcode

Flexible Scan Range

2D imager scan engine delivers reliable barcode capture
Designed for fast, hands-free scanning at the fingertip

Rugged & Reliable

Ingress Protection Rating : IP65
Drop Spec : 4′ (1.2m) without protective boot, 6′ (1.8 m) with protective boot
Tumble Test: 2,000 cycles at 1.6′ (0.5 m)
Operating : 14 ̊F to 122 ̊F (-10 ̊C to 50 ̊C)
Storage : -4 ̊F to 140 ̊F (-20 ̊C to 60 ̊C)
Humidity : 5% to 95% (non-condensing)

Battery & Charging

Battery : 500mAh Lithium-polymer (removable)
Charging : Type-C USB connector, Charging Cradle
Advanced power management with hibernation mode
Optimized battery life for extended wearable use

Integration & SDK

Bluetooth® Low Energy (BLE 5.0) for fast, low-power data transmission
NFC-based pairing simplifies device setup and connectivity
Supports integration with Android host devices via HID or SPP

Compliance & Safety

CE, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
LED Safety : IEC62471:2006

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
