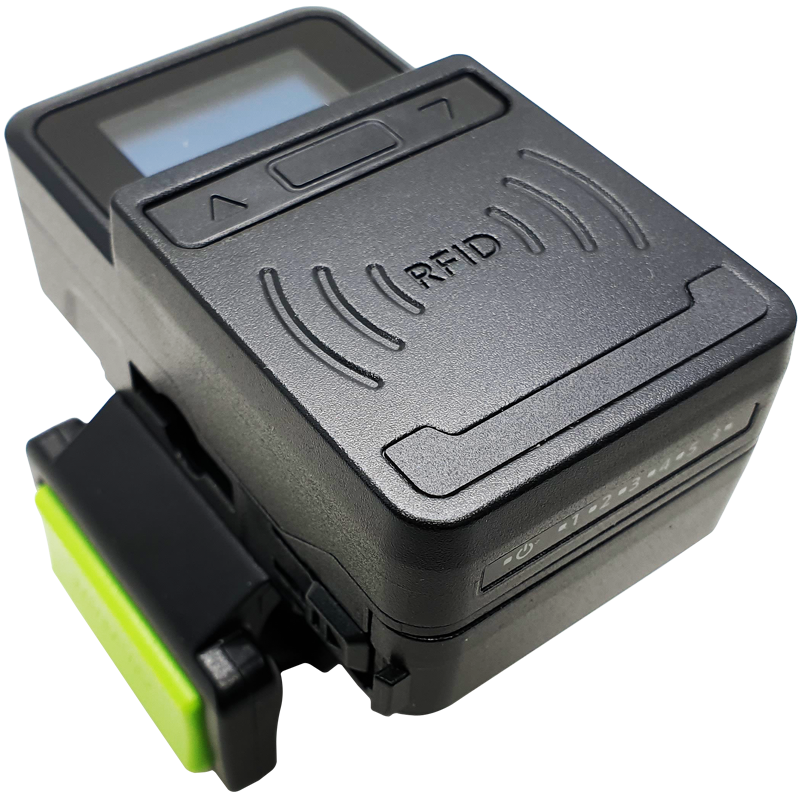

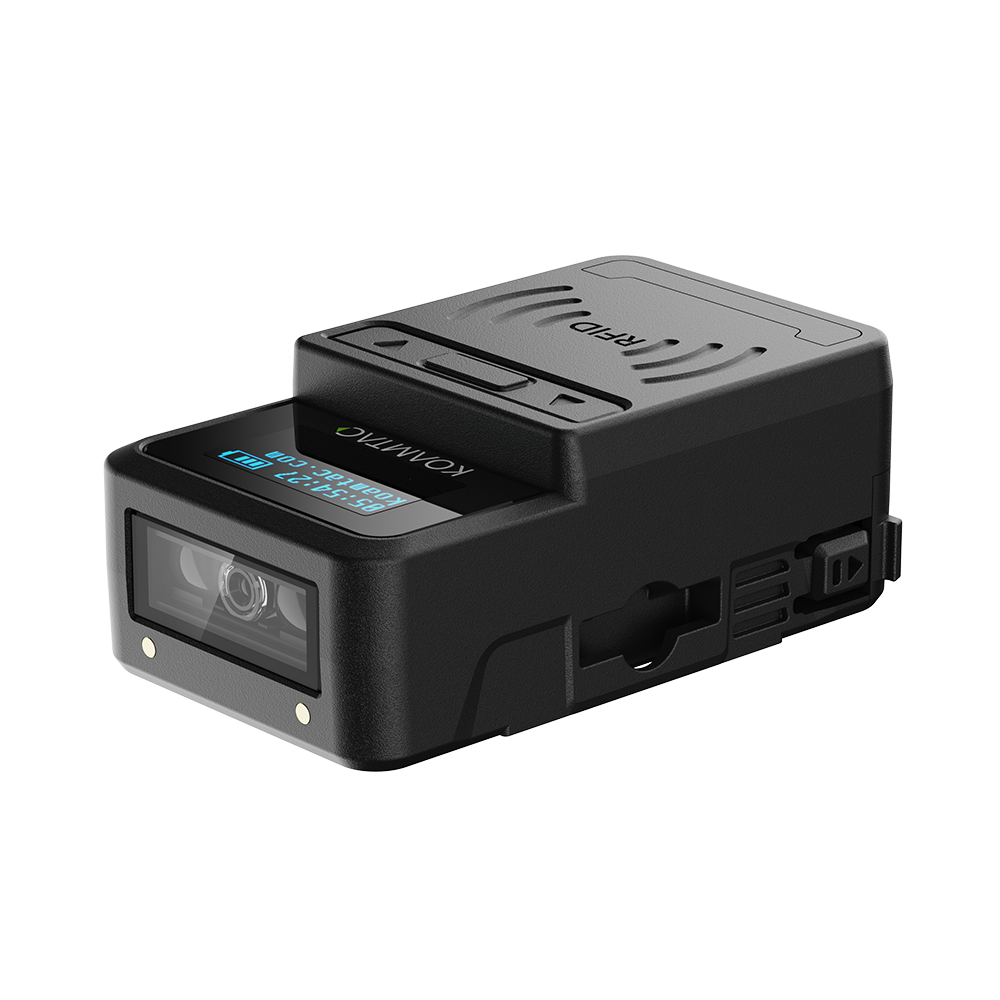

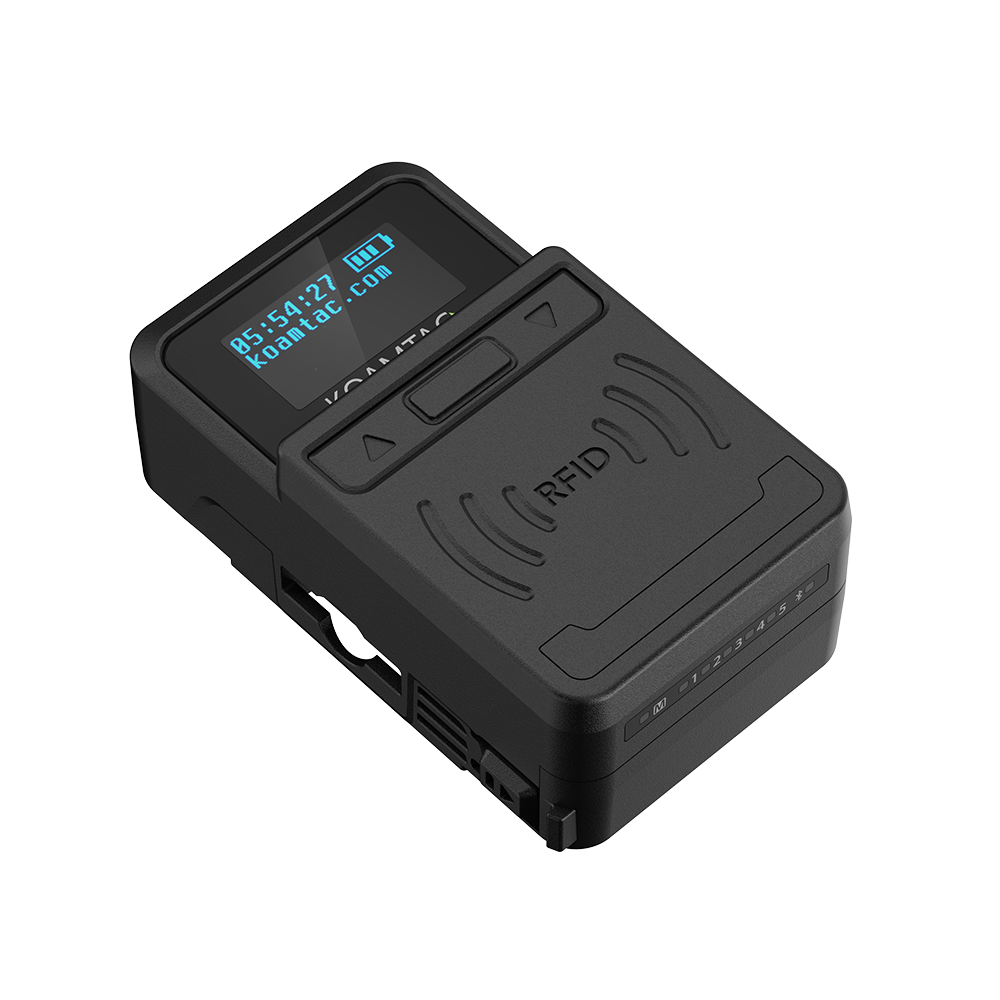

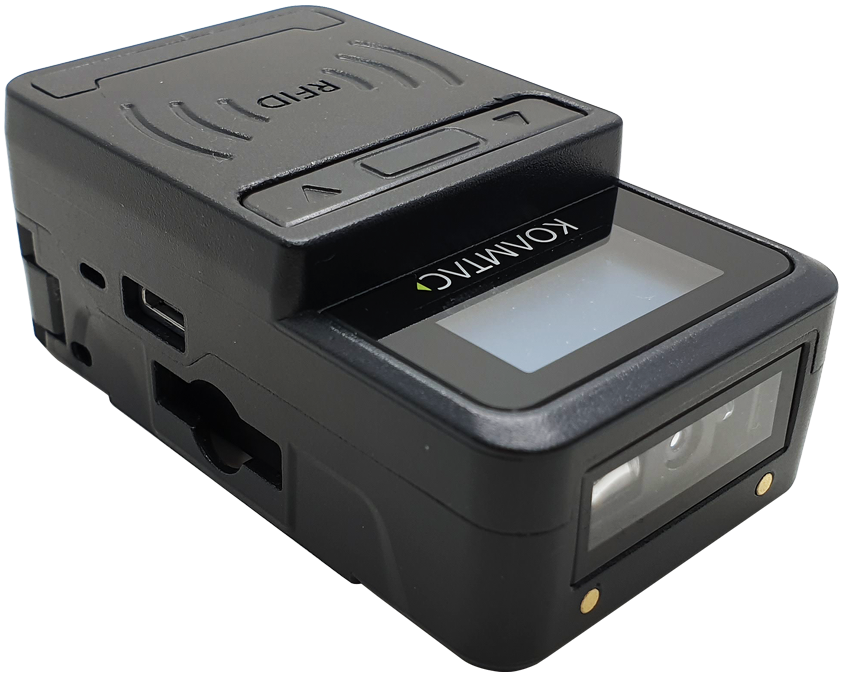

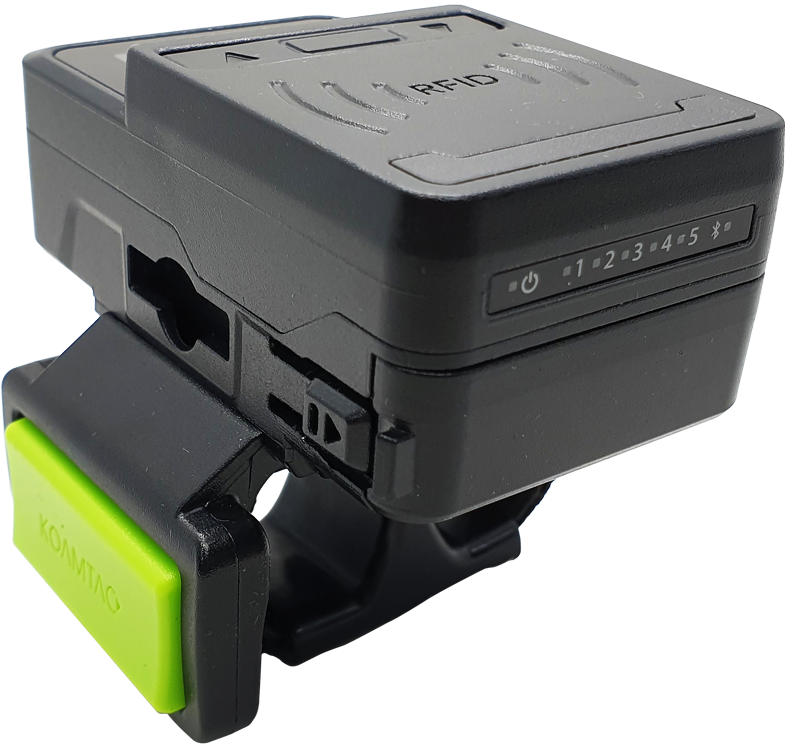

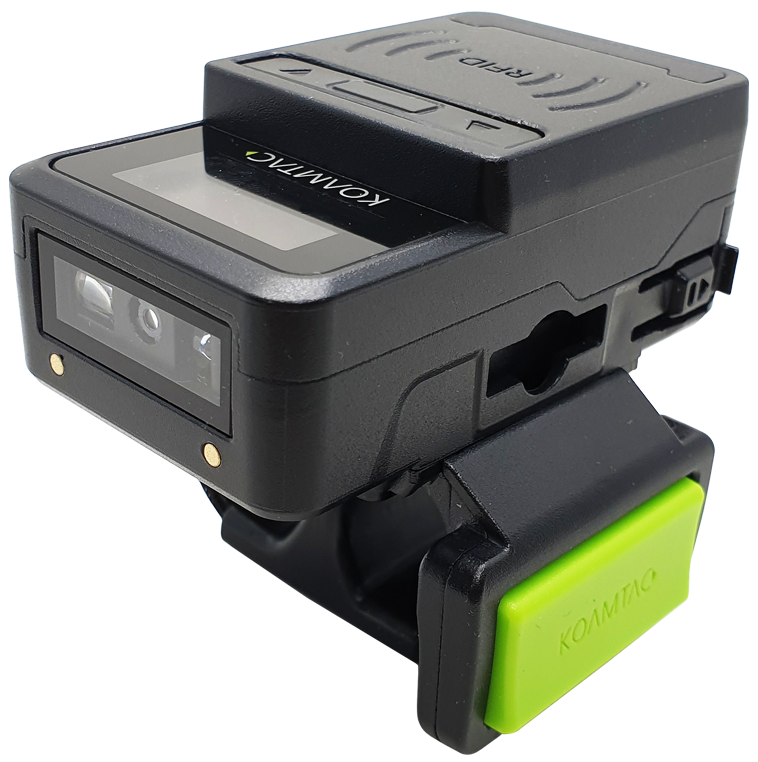

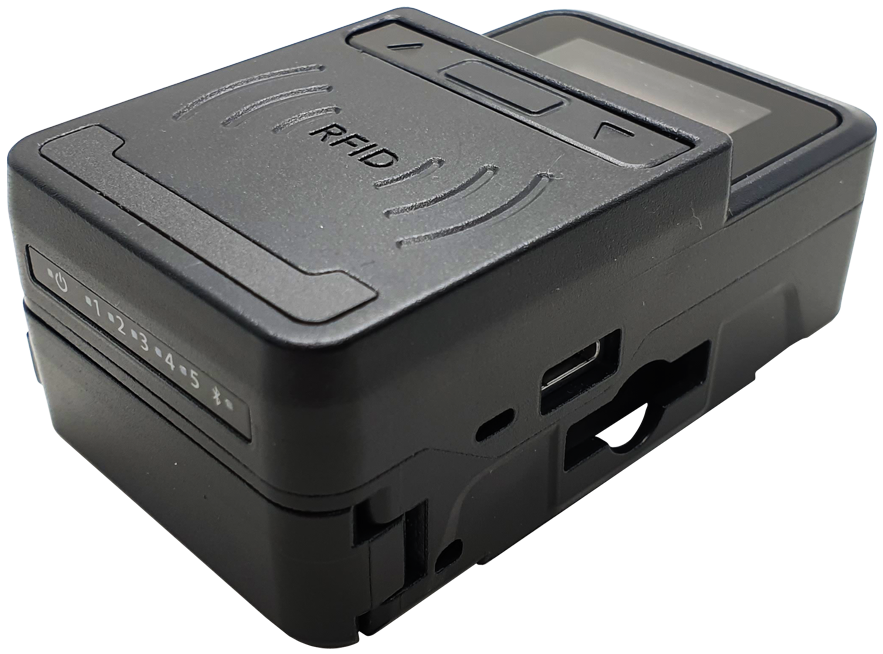

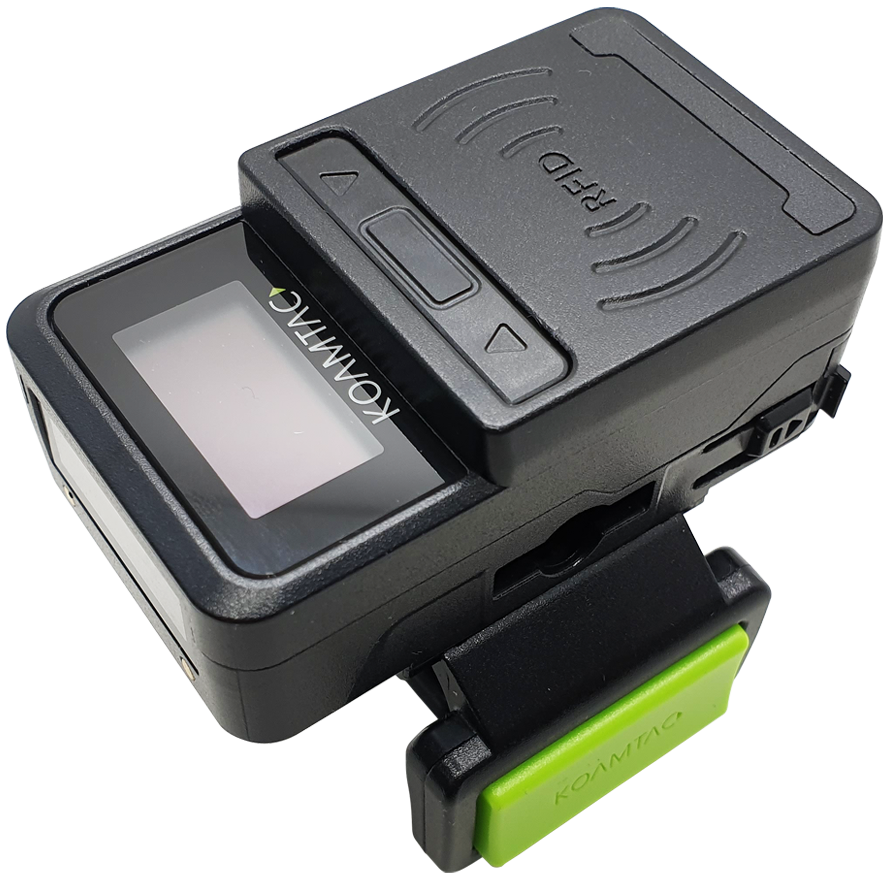

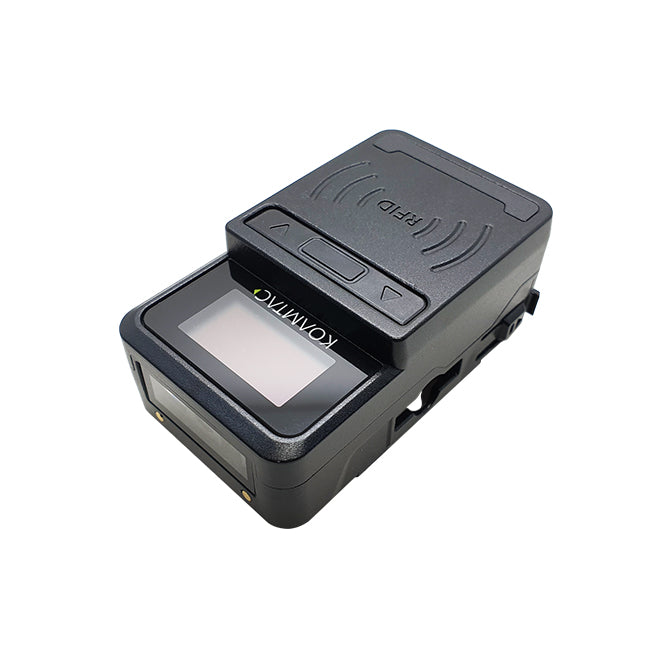

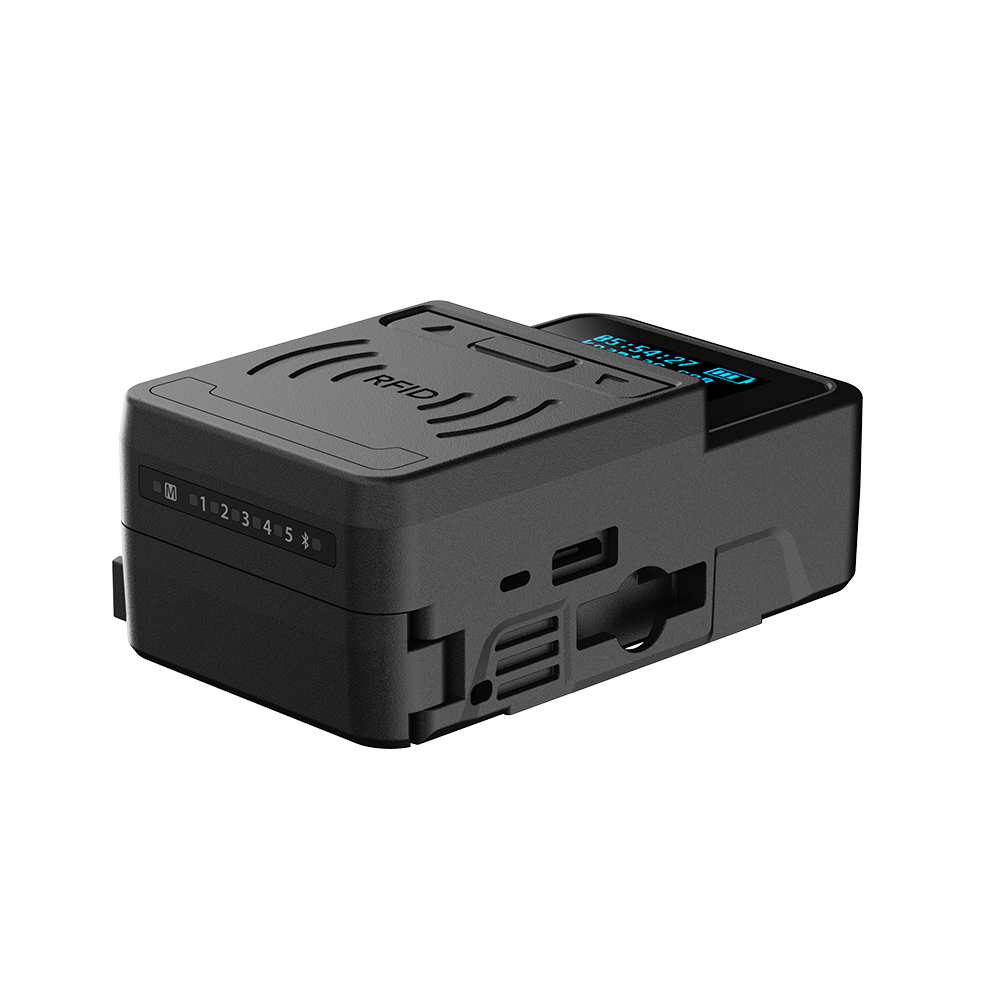

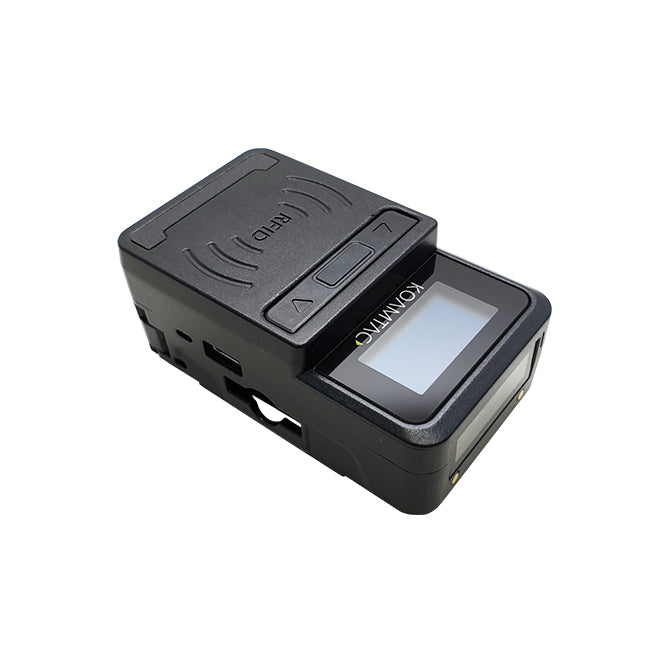

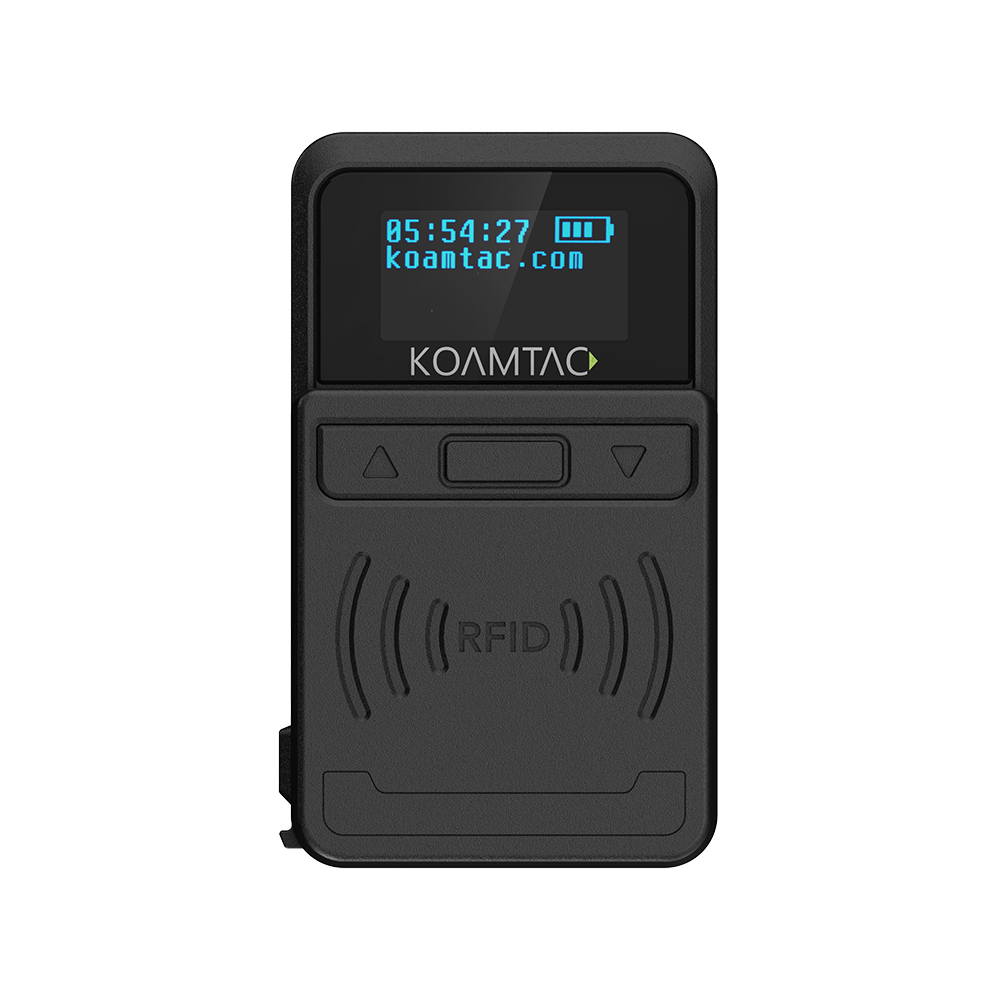

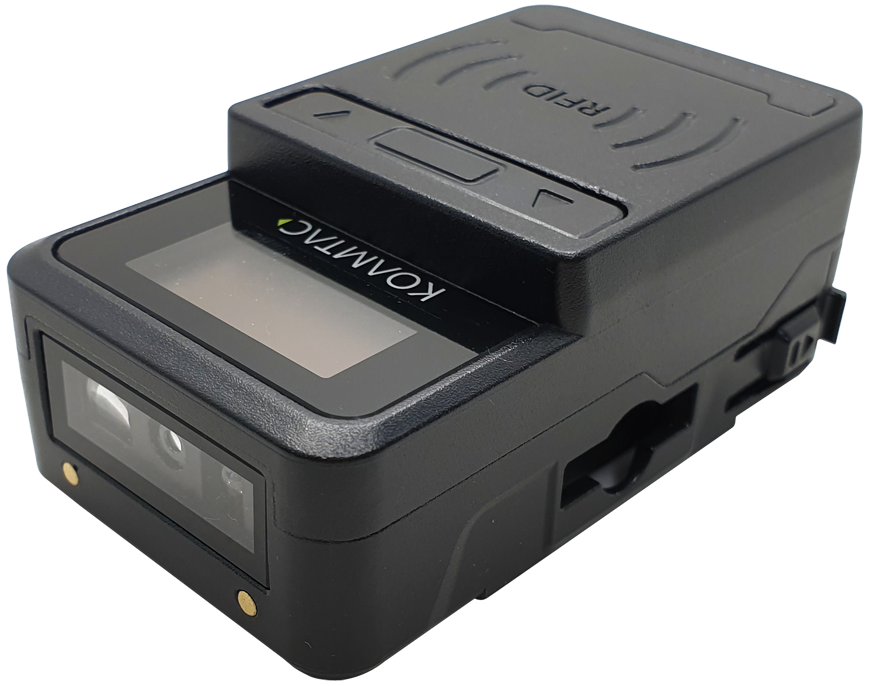

KDC180H 2D Imager Wearable Barcode Scanner & Data Collector with 0.5W UHF Reader

Name: KDC180H 2D Imager Wearable Barcode Scanner & Data Collector with 0.5W UHF Reader
Brand: KOAMTAC Inc.
SKU: 382760
Price: 699.00 EUR
Availability: InStock

SKU. 382760 EAN. 8809355879178

KDC180H 2D Imager Wearable Barcode Scanner & Data Collector with 0.5W UHF Reader

€699

Sale Coming Soon

KDC180H 2D Imager Wearable Barcode Scanner & Data Collector with 0.5W UHF Reader

Compact Wearable Barcode & UHF RFID Scanner with BLE Connectivity

Key Features

Designed for use with KOAMTAC Ring Scanners and Finger Trigger Gloves
Bluetooth® Low Energy (BLE 5.0) for wearable smart device connectivity
IP65-rated and 6 ft (1.8 m) drop specification
2D imager barcode scanning with integrated UHF RFID reading
1″ OLED display with 5 programmable LED indicators
Advanced power management with hibernation mode
Supports charging via USB-C or multi-bay charging cradle (pogo pins)
Includes FREE KTSync® software and FREE SDK

Scan Range & UHF Specs

Barcode Read Rage: 44-800 mm
Nominal Read Range: .5 m+
Supported Standards :EPC Class1 Gen2, EPC Gen2 V2

In the Box

KDC180HU UHF and Barcode Reader
Protective Rubber Boot (optional)
USB-C Cable
KDC Lanyard

* Scanner only. Wearables sold separately.

View full details

Features

Maximum Compatibility

Designed to integrate with KOAMTAC wearable solutions
Compatible with Ring Scanner and Finger Trigger Glove
BLE connectivity for smartwatches, smart glasses, and other wearable smart devices
OS support: Android, iOS, macOS, Tizen, Windows

Symbologies Supported

2D imager : Supports all major 1D & 2D barcode symbologies
UHF RFID : Supports popular RFID standards

Flexible Scan Range

KDC180H: 2D imager for aggressive barcode scanning
Integrated UHF reader enables RFID tag reading in wearable workflows
Designed for hands-free and mobile data collection applications

Rugged & Reliable

Ingress Protection Rating : IP65
Drop Spec : 6′ (1.8 m)
Operating : -4˚F to 122˚F (-20˚C to 50˚C)
Storage : -4˚F to 140˚F (-20˚C to 60˚C)
Humidity : 5% to 95% (non-condensing)

Battery & Charging

Battery : Lithium-Ion (3.7V DC, 1010mAh)
Charging : USB, Charging Cradle
Advanced power management with hibernation mode
Battery designed to outlast an average work shift
Charging via Micro USB cable
Compatible with multi-bay charging cradles using pogo pins

Integration & SDK

Bluetooth Low Energy (BLE 5.0) for fast, low-power data transmission
Includes KTSync software with keyboard wedging, application generation, database lookup, inventory management, and KDC configuration
Includes SDK with technical support from KOAMTAC engineers and development team
Supports Android, iOS, macOS, and Windows
