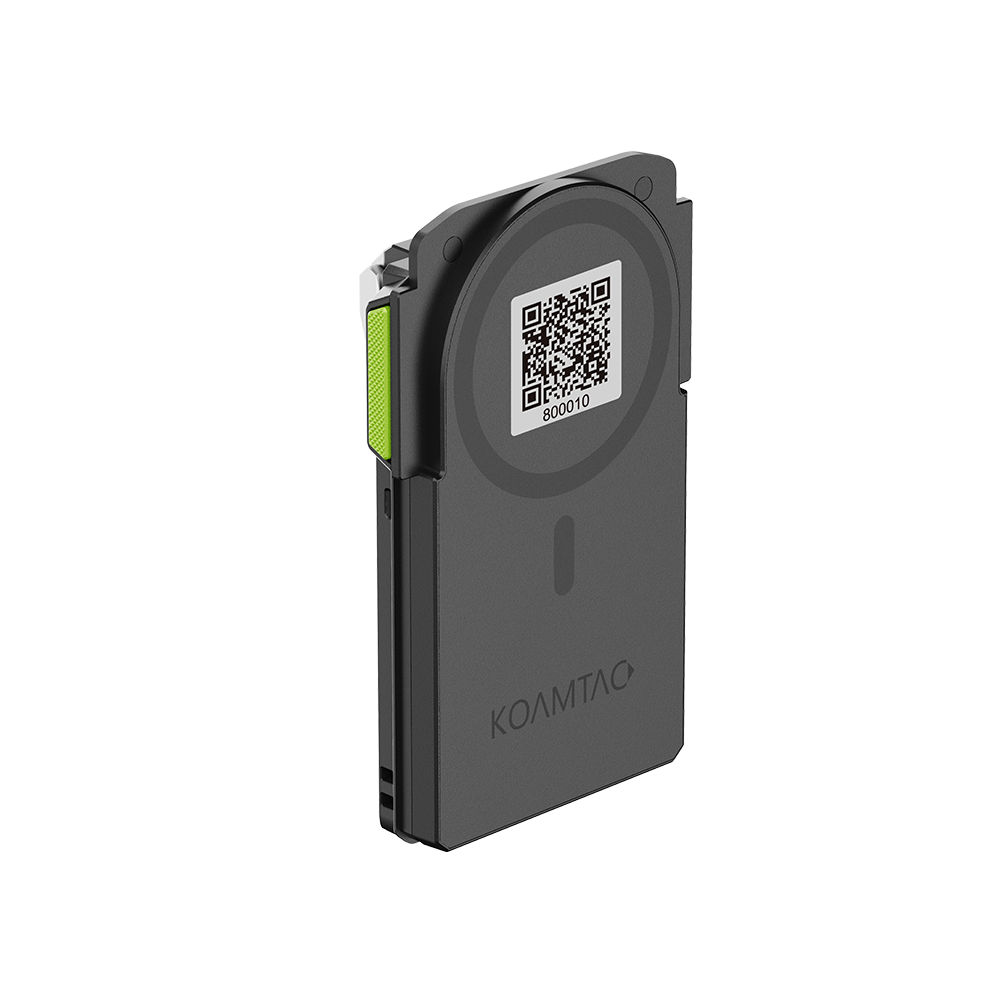

Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled

SKU. 504800 EAN. 8800322685570

Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled

Regular price €239
Regular price Sale price €239
Sale Coming Soon
Quantity
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled
Flat Magnetic Universal Adaptor (FMUA) for KDC1000/1100 SmartSled

Fast, Tool-Free SmartSled Attachment

Key Features
  • Serves as a magnetic mounting solution for KDC1000, KDC1100, and KDC1200 SmartSled scanners

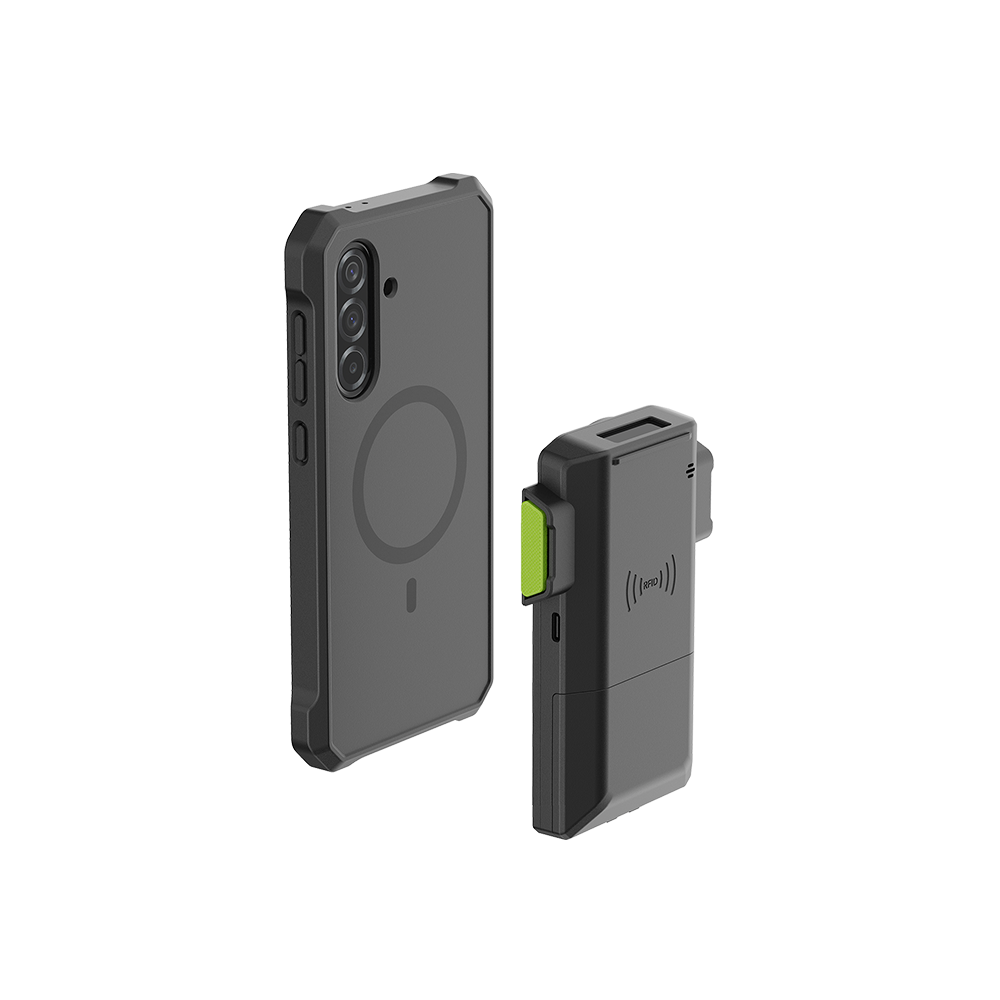

  • Designed for use with magnetically compatible smartphone cases or direct attachment to supported smartphones
  • No KOAMTAC custom case required
  • Attaches magnetically—no drilling or screwing into the case for semi-permanent modification
  • Enables fast attachment and removal of SmartSled scanners for flexible deployment and shared-device use
  • Available in two form factors to support different configurations:
    - Flat MUA (FMAU) for handheld SmartSled operation
    - Angled MUA (AMUA) for improved ergonomics when used with 1.0W UHF Reader Companion/Pistol Grip
  • Maintains a clear view of the smartphone’s built-in camera for software-based barcode scanning
  • Supports fast and simple pairing:
    - BLE pairing via a pairing barcode printed directly on the adaptor
    - NFC tap-to-pair support
  • Compatible with KOAMTAC 1-slot and 5-slot KDC1200 charging cradles
  • Allows devices to be docked and charged without removing the adaptor
  • KDC SmartSled scanner, smartphone, accessories, and charging cradles sold separately.

In the Box
  • Flat Magnetic Universal Adapter (FMUA) for KDC1000/1100 SmartSled
View full details

Features

Maximum Compatibility
Maximum Compatibility
  • Connects via Lightning, USB-C, or Bluetooth 5.0 to iPhone (13–16 series), Galaxy A35, XCover7, and other supported devices.
  • Bluetooth Modes: HID (Android/iOS/Windows), SPP (Optional Secure Mode)
  • Fully compatible with Android, iOS, macOS, and Windows.
  • USB Interfaces: USB (Android/iOS), Lightning (iOS)
  • Supports USB Power Delivery v3.0 for fast, reliable charging.
Symbologies Supported
Symbologies Supported
  • 1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1
  • 2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
  • Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
  • OCR/MRZ: OCR-A, OCR-B, MICR E13-B, SEMI
Flexible Scan Range
Flexible Scan Range
  • ST:49–740 mm
  • PRO:44–800 mm
  • MR: 85–1500 mm
  • ER:88–2848 mm
  • Optional flat-angled scan engine available upon request.
Rugged & Reliable
Rugged & Reliable
  • IP Rating: IP65 (dust-tight & water-resistant), IP54 with 1.0W UHF Reader
  • Drop Tested: Survives drops from 1.5 m
  • Operating Temperature: -20°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 5% to 95% non-condensing
Battery & Charging
Battery & Charging
  • Supports 2,000mAh Extended Battery and 6,000mAh Pistol Grip Battery
  • Charging via USB-C or Pogo Pin charging cradle
Integration & SDK
Integration & SDK
  • Keyboard wedging and synchronization
  • Transfer to applications, add-on prefixes/suffixes, barcode option selection
  • SDK support for Android, Xamarin, Cordova, React Native, Flutter, and Web
  • Dedicated technical support ensures reliable data collection
Companion Modules
Companion Modules
  • 0.5W / 1.0W UHF Reader: Nominal Read Range: 1.5 m for 0.5W, 6 m for 1.0W
  • HF/NFC Reader
  • Extended Batteries
  • Pistol Grip with optional 6,000mAh battery
  • 1/2/5/10-Slot Charging Cradles, Car & Forklift Cradles
Compliance & Safety
Compliance & Safety
  • Compliant with R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS
  • Laser safe: IEC60825-1:2007 & IEC60825-1:2014, Class II
Warranty & Support
Warranty & Support
  • 1-year limited warranty with dedicated customer support and RMA services
