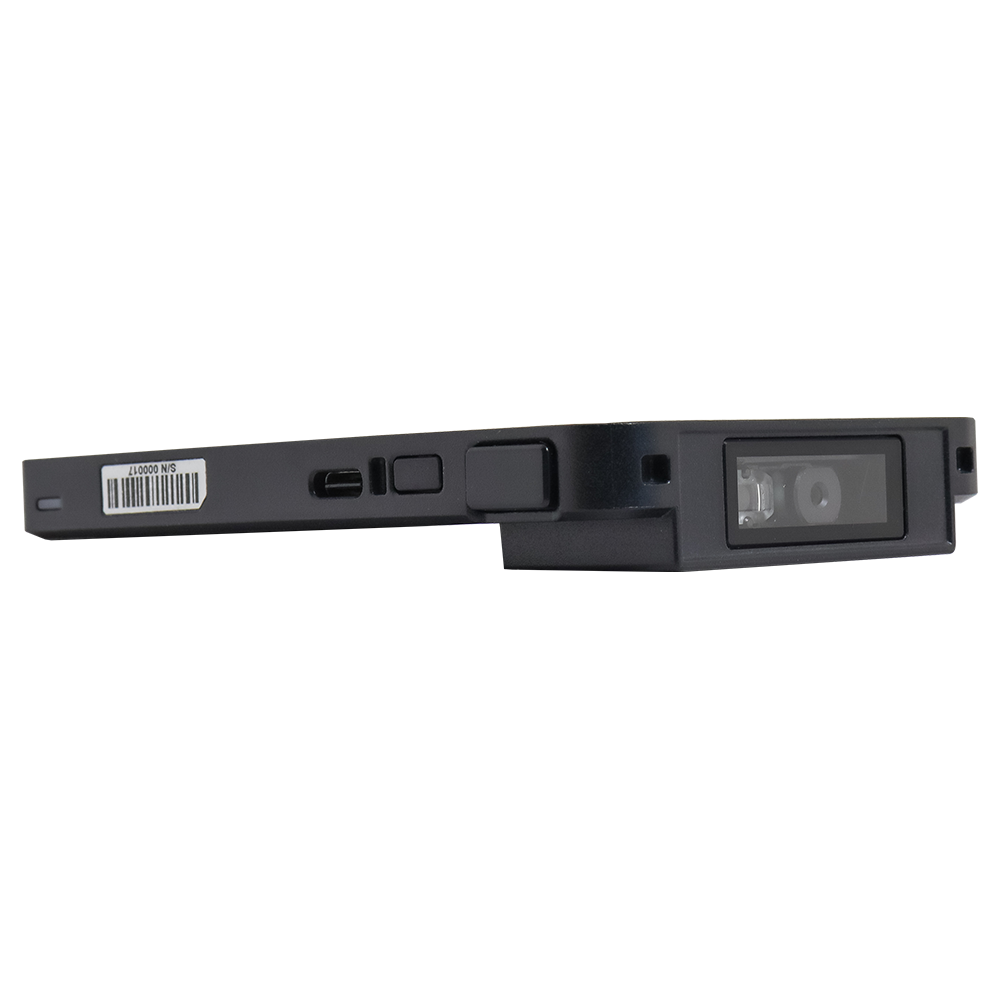

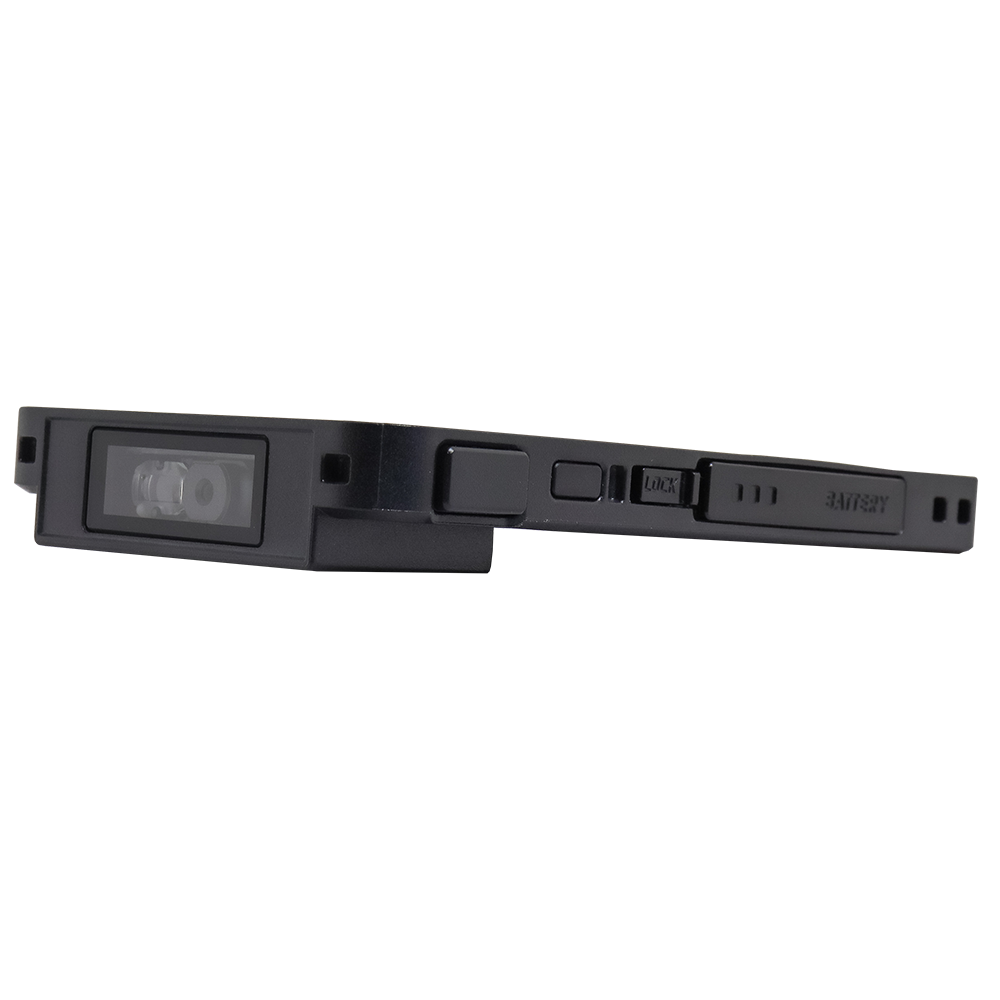

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

SKU. 344200 EAN. 8809697773851

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

€349

€349

Sale Coming Soon

Title

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

KDC480D 1D CCD Bluetooth Barcode Sled Scanner

Bluetooth Low Energy 1D CCD Barcode Sled Scanner for Mobile Data Collection

Key Features

1D CCD barcode sled scanner
Designed for mobile Auto-Identification applications with smartphones and tablets
Angled scan engine for improved ergonomics
Bluetooth® Low Energy (BLE 5.0) connectivity
IP65-rated and 1.5 m drop specification
Supports all major 1D & 2D barcodes
8MB internal flash memory for on-device data storage
Supports simultaneous charging of scanner and smartphone
Includes FREE KTSync® keyboard wedging software and FREE SDK

In the Box

KD485D Barcode Sled Scanner

* SmartSled case sold separately.

View full details

Features

Maximum Compatibility

Designed to work with various smartphones and tablets
Optimized for use with Apple iPod touch 6 via SmartSled Charging Case
SmartSled architecture allows periodic smartphone upgrades without replacing the scanner

Symbologies Supported

Supports all major 1D barcodes

Rugged & Reliable

Ingress Protection Rating: IP65
Drop Spec: 1.5 m
Operating: -20˚C to 50˚C
Storage: -20˚C to 60˚C
Humidity: 5% to 95% (non-condensing)

Battery & Charging

Battery: Lithium-ion (3.7V DC, 1100 mAh)
Charging: USB, Charging Cradle

Companion Modules

Compatible with KDC480 Medium- & Long-Range UHF RFID Companions
Compatible with KDC480 Pistol Grip & Extended Battery Companions
Compatible with KDC480 MSRIC and mPOS Companions
FREE KTSync keyboard wedging software
FREE SDK for application development and integration

Integration & SDK

Keyboard wedging support via KTSync
SDK provided for mobile application integration
Designed for seamless barcode data transfer to host applications

Compliance & Safety

R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant
Laser Safety : IEC60825/CDRH Class II
LED Safety : IEC62471:2006

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
