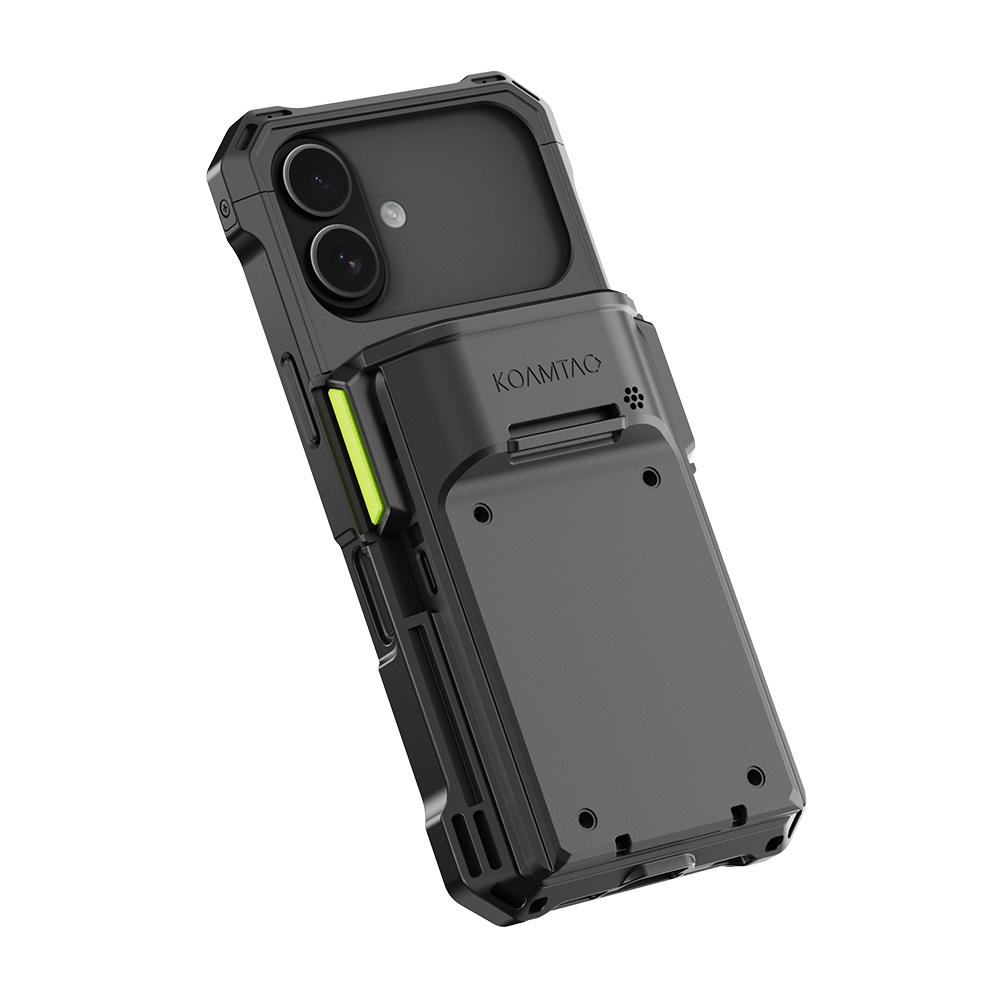

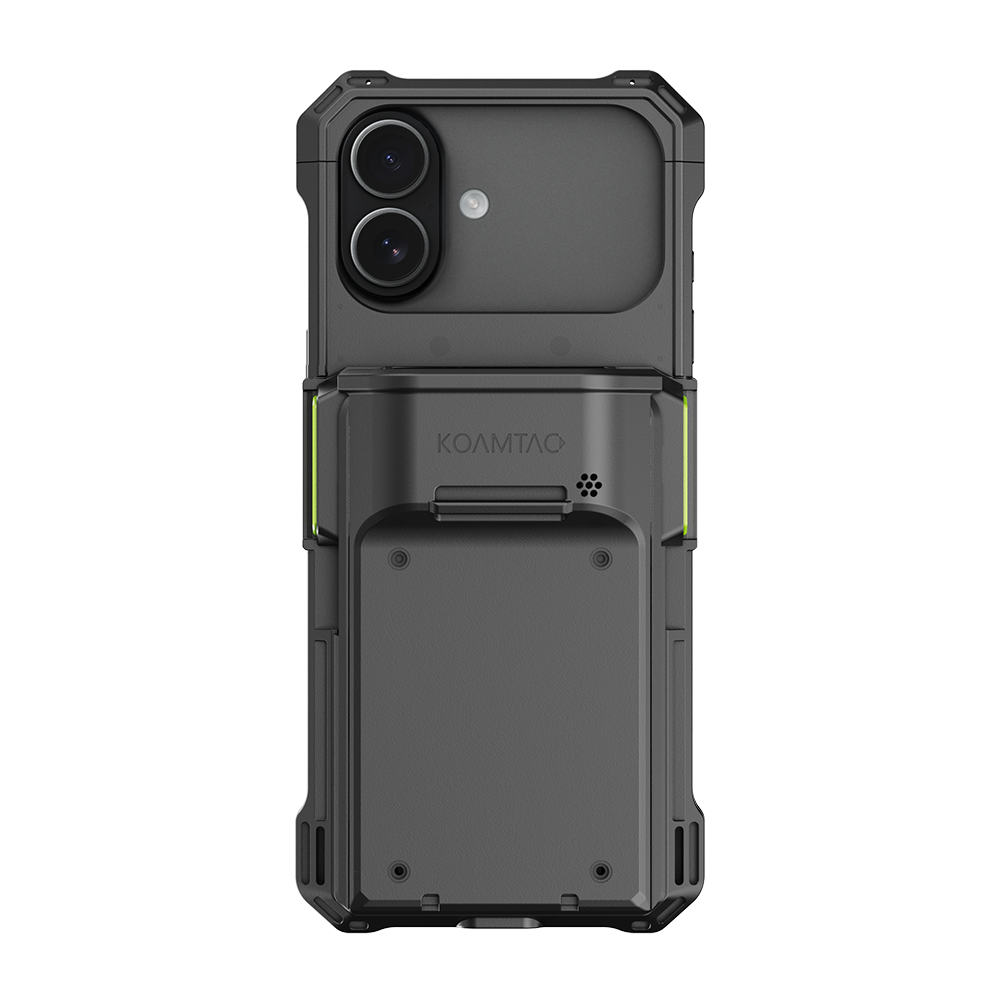

KDC1000 SmartSled for iPhone 17

SKU. 510490 EAN. 8800322686249

KDC1000 SmartSled for iPhone 17

€499

€499

Sale Coming Soon

KDC1000 SmartSled for iPhone 17

KDC1000 SmartSled for iPhone 17

KDC1000 SmartSled for iPhone 17

KDC1000 SmartSled for iPhone 17

Transform Your Smartphone into  a Rugged, High-Performance Barcode Scanner

Key Features

Size: 75 mm x 108.6 mm x 26.8 mm
Connects via Lightning, USB-C, and Bluetooth 5.0
Compatible with Android, iOS, macOS, and Windows
Scan Type: 1D/2D, Postal Codes, OCR/MRZ
IP65 Dust/Water-resistant, 1.5m drop-tested, -20°C to 50°C, up to 95% humidity
Charging via USB-C or Pogo Pin charging cradle

Scan Range by Model

ST: 49–740 mm

In the Box

SmartSled Custom Case
SmartSled Scanner

* Smartphone sold separately.

View full details

Features

Maximum Compatibility

Connects via Lightning, USB-C, or Bluetooth 5.0 to iPhone (13–16 series), Galaxy A35, XCover7, and other supported devices.
Bluetooth Modes: HID (Android/iOS/Windows), SPP (Optional Secure Mode)
Fully compatible with Android, iOS, macOS, and Windows.
USB Interfaces: USB (Android/iOS), Lightning (iOS)
Supports USB Power Delivery v3.0 for fast, reliable charging.

Symbologies Supported

1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1
2D: Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
OCR/MRZ: OCR-A, OCR-B, MICR E13-B, SEMI

Rugged & Reliable

IP Rating: IP65 (dust-tight & water-resistant), IP54 with 1.0W UHF Reader
Drop Tested: Survives drops from 1.5 m
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Humidity: 5% to 95% non-condensing

Battery & Charging

Supports 2,000mAh Extended Battery and 6,000mAh Pistol Grip Battery
Charging via USB-C or Pogo Pin charging cradle

Companion Modules

0.5W / 1.0W UHF Reader: Nominal Read Range: 1.5 m for 0.5W, 6 m for 1.0W
HF/NFC Reader
Extended Batteries
Pistol Grip with optional 6,000mAh battery
1/2/5/10-Slot Charging Cradles, Car & Forklift Cradles

Integration & SDK

Keyboard wedging and synchronization
Transfer to applications, add-on prefixes/suffixes, barcode option selection
SDK support for Android, Xamarin, Cordova, React Native, Flutter, and Web
Dedicated technical support ensures reliable data collection

Compliance & Safety

Compliant with R&TTE, RED, FCC, KC, J-MIC, VCCI, SRRC, RoHS
Laser safe: IEC60825-1:2007 & IEC60825-1:2014, Class II

Warranty & Support

1-year limited warranty with dedicated customer support and RMA services
